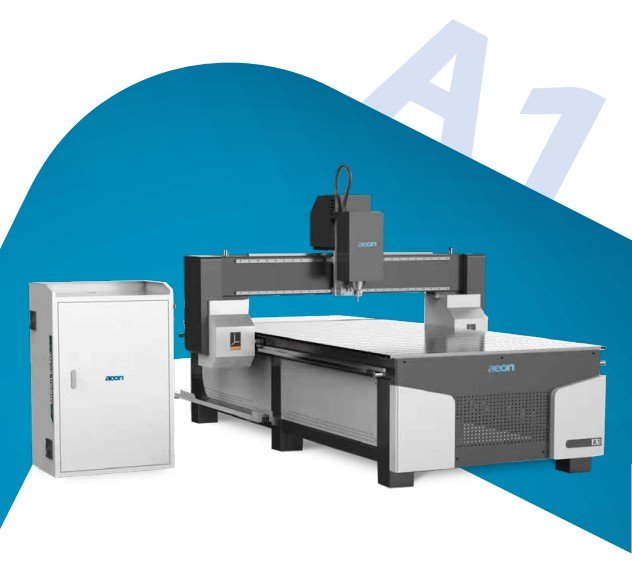

AE 1325 A1 – CNC CUTTING MACHINE
High-quality CNC Machine with HSD 6KW(Air cooling) Spindle
Description
High-quality CNC Machine with HSD 6KW(Air cooling) Spindle
MATERIALS
Acrylic, Aluminum, Copper, Insulation Board, Abs Board, Pvc Board, Wood.
APPLICATIONS
Mini luminous characters, acrylic cutting, carving, chamfering, reached mirror effect. Processing acrylic panels (TV, DVD and other various acrylic panel ) on Wood furniture, cabinet doors, acrylic products, exhibition, plastic plate cutting.
SPECIFICATION
| Spindle Power | HSD 6KW(Air cooling)Spindle |
| Working area | 1300x2500x200mm |
| Travelling Position Acc. | +/-0.05mm |
| Repositioning Accuracy | +/-0.05mm |
| Max. Travelling speed | 30000mm/min |
| Max. Working speed | 20000mm/min |
| Spindle rotating speed | 0-18000 RPM |
| Working Voltage | AC 380V/3 phase |
| Gross Weight | 1300 Kg |
| Measurement | L3.05 X W2.65 X H1.7m |
| Driving mode | JAPAN Yaskawa servo with Japan SHIMPO Reducer |
| Control System | NK105 G3 Controller |
| Vacuum Pump Power(optional) | Vacuum & T-slot working table with 7.5kw air vacuum pump |
| Machine Body | Suction and pressure integrated platform table, high precision TAIWAN 25 rails on Yaxis, X,Z axis 20 rails, X,Y high precision rack pinion, Zaxis ball screw, With dust collector and mist coolant option] |
| Package | L3450mm*W2280mm*H1650mm |
