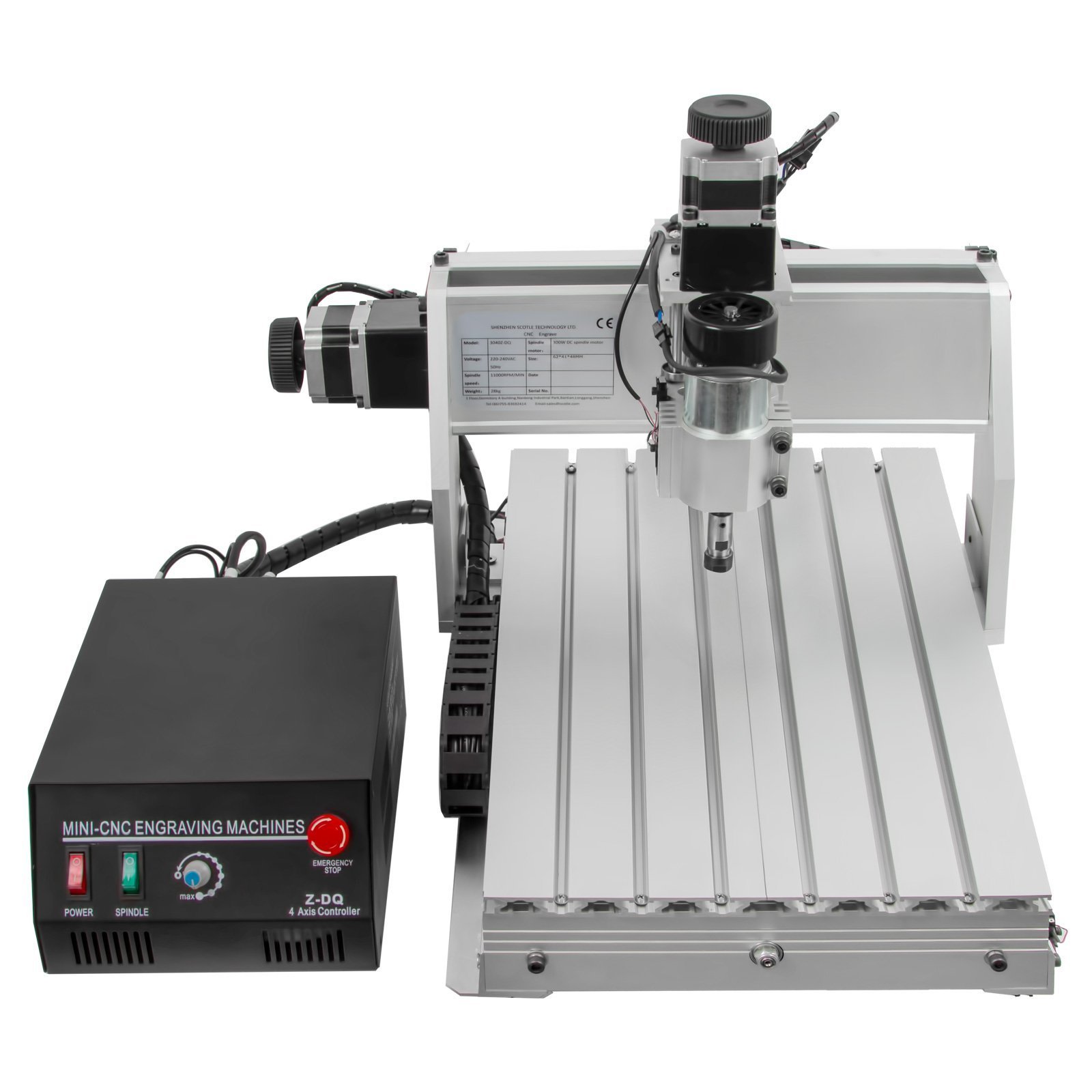

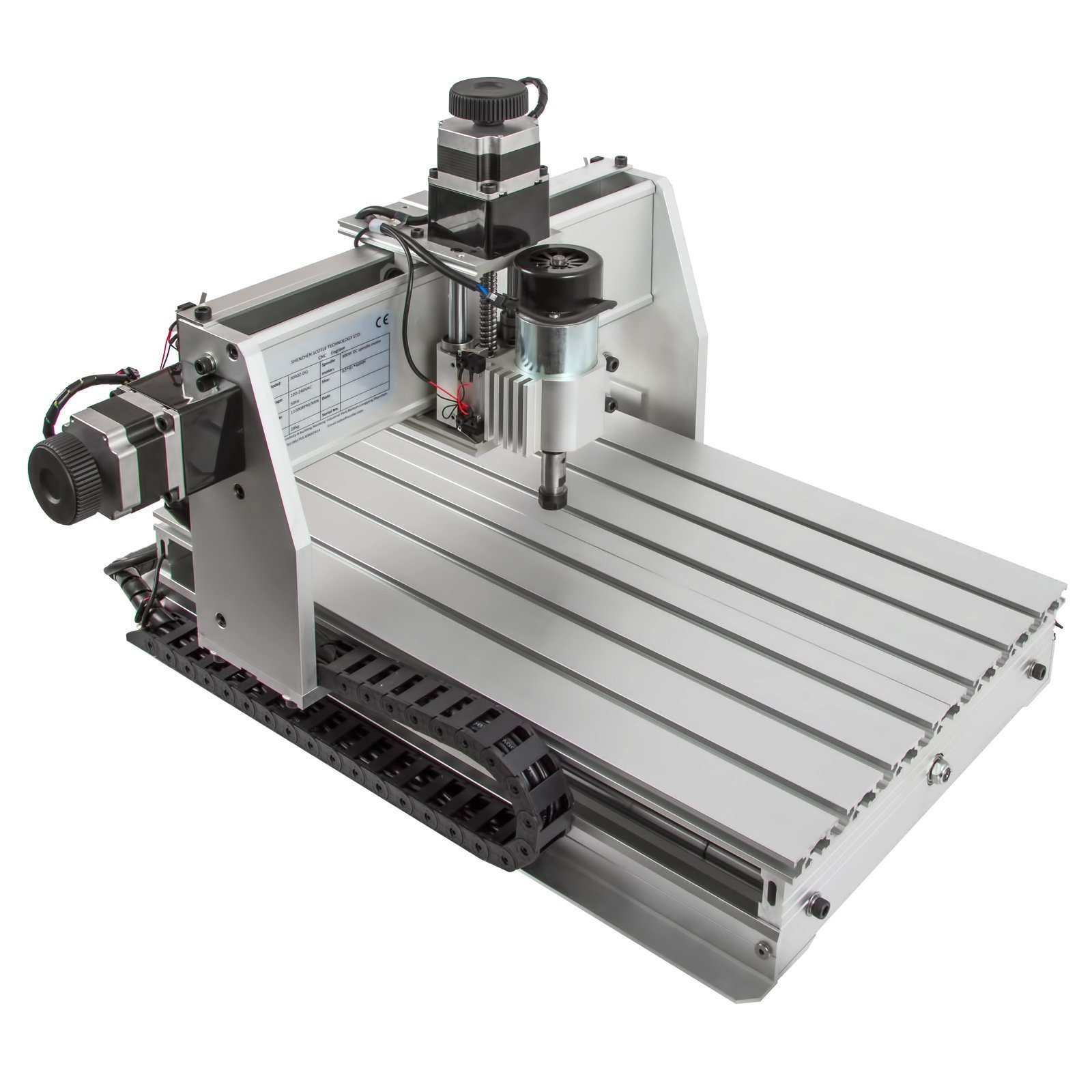

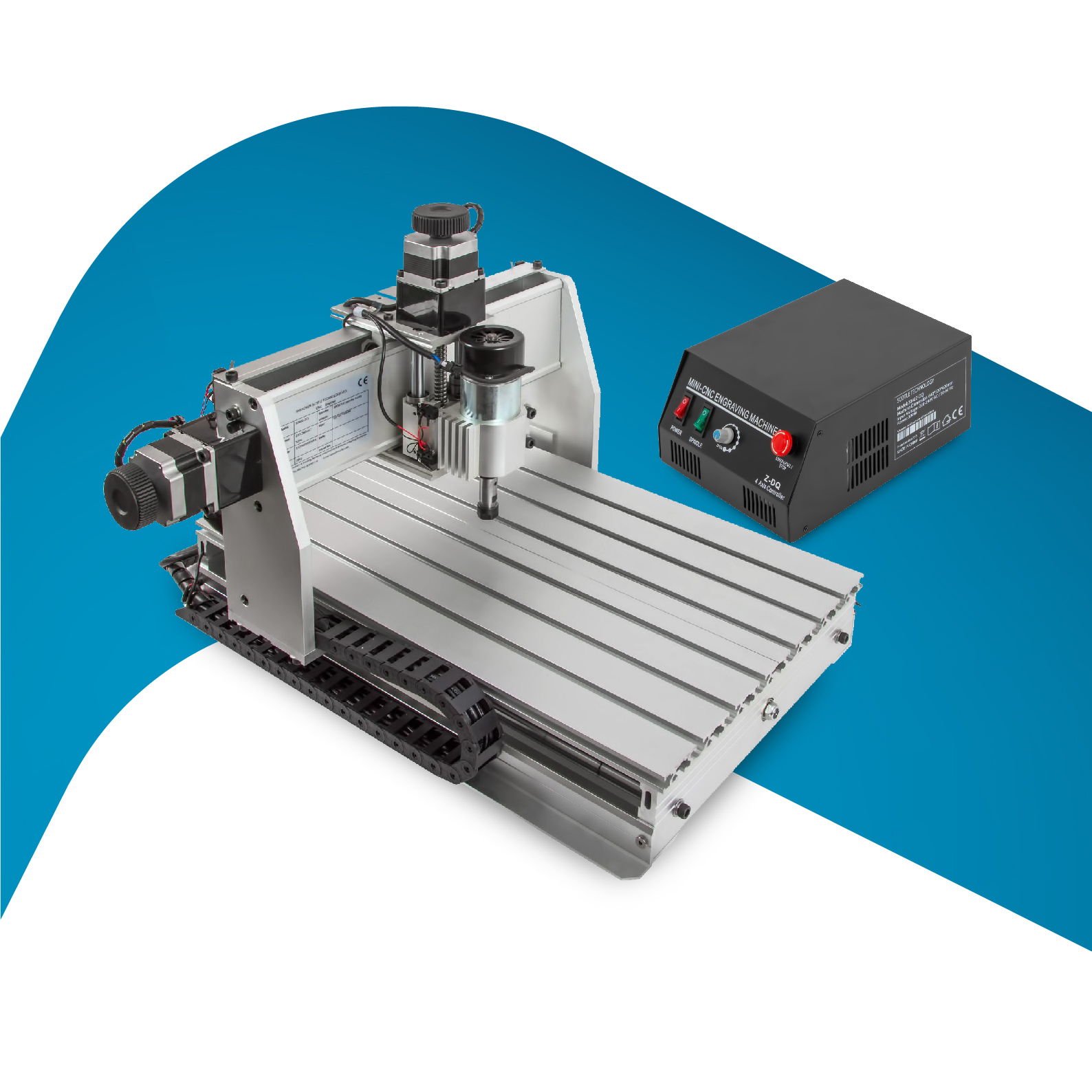

AE 3040z 3-AXIS CNC ENGRAVER
To engrave on Acrylic, Aluminum, Copper, Insulation Board, Abs Board, Pvc Board, Wood. MDF board, native wood, non-ferrous metal etc
Description
FEATURES

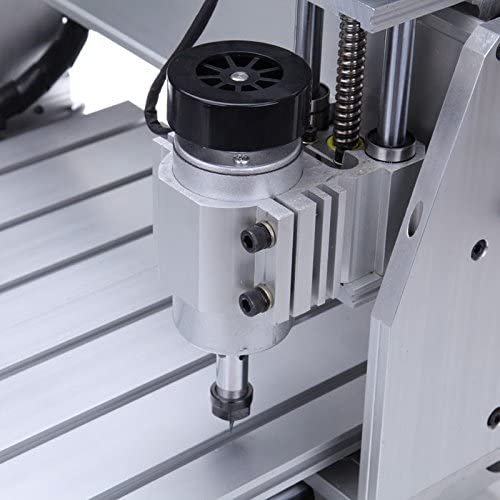

• 500w Air Cooling Spindle
• High precision Ball screw
• Independent power supply for mainboard, prolong using life.
• Mach 3 software for Parallel port and USB CNC software is for the USB port, both software is Free.
• Limit switch added
• Auto-Checking function
• USB Interface
MATERIALS
Acrylic, Aluminum, Copper, Insulation Board, Abs Board, Pvc Board, Wood. MDF board, native wood, non-ferrous metal etc
APPLICATIONS
Mini luminous characters, acrylic cutting, carving, chamfering, reached mirror effect. Processing acrylic panels (TV, DVD and other various acrylic panels) on Wood furniture, cabinet doors, acrylic products, exhibition, plastic plate cutting
TECHNICAL SPECIFICATIONS
| Effective working travel | 280(X)mm*390(Y)mm*55(Z)mm |
| Shape dimension | 615 x 485 x 390mm |
| Max. workspace dimension | 280mm x 390mm < 70mm |
| Worktable dimension | 530mm x 320mm |
| Frame materials | aluminium alloy 6063 and 6061 |
| Driving units X/Y/Z axis | SFUR1204-DFC7-P0 ball screw |
| Sliding units X-axis | Dia.16mm chrome plate shafts |
| Sliding units Y-axis | Dia.16mm chrome plate shafts |
| Sliding units Z-axis | Dia.12mm chrome plate shafts |
| Stepper motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 500w dc motor 11000PRM/Min52MM 100V |
| Principal axis collet | ER11/3.175 mm |
| Positional accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Carving Instructions | G code/TAB files/NC file/NCC files |
| Maximum speed | 0-3000mm/min |
| Carving speed | 300-2500mm/min (different materials differ) |
| Operating Voltage | AC110V/AC220V |
| Computer connection | Palrallel port for MACH3, USB cable for USBCNC |
| Command code | G code |
| Acceptable software | Mach3 for Win XP, USBCNC for Win 10 |
| Protection | Emergency stop button |
| Accessories | Auto checking tool, cutter, same as accessories photo |
| Package size | 1 carton, 66 x 59 x 53cm |
| Gross weight | 29 kg |
