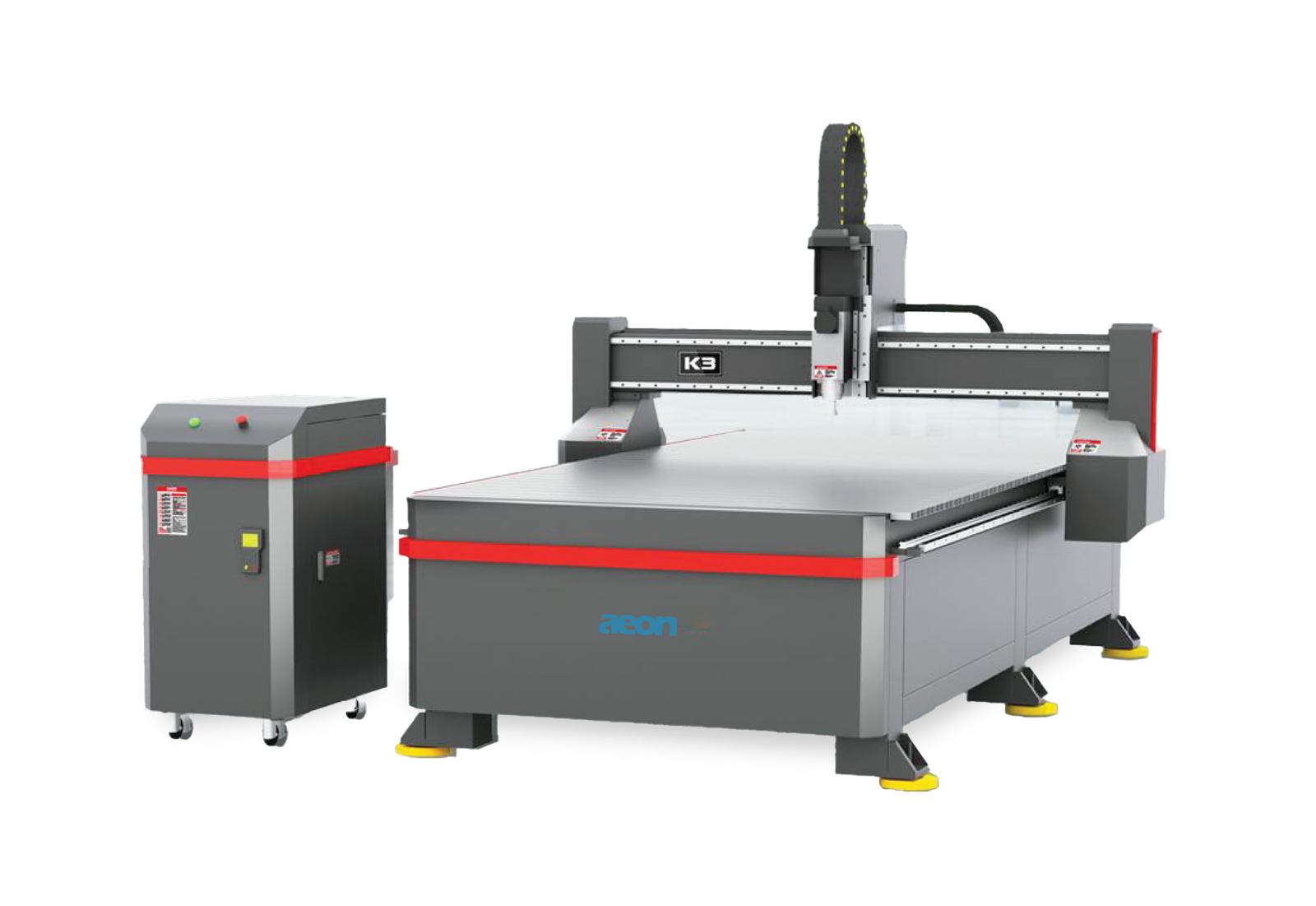

AE2500 K3ST CNC Cutting Machine – High Precision CNC Router
Engineered for precision and performance, the AE2500 K3ST is a CNC cutting machine ideal for woodworking, signage, and metal applications. With a 3.5KW air-cooled spindle, NK105 G2 control system, and heavy-duty steel frame, it delivers flawless results for professional fabrication.
Description
The AE2500 K3ST CNC Cutting Machine by AEON is designed for professionals who demand high accuracy, durability, and productivity. Built with a whole steel structure and driven by precision stepper motors, it delivers clean, sharp cuts across a variety of materials.
This model features a 1300x2500x200mm working area, a 3.5KW HQD air-cooled spindle (up to 18,000 RPM), and high-precision helical rack & pinion transmission for the X and Y axes, while the Z-axis is powered by a Taiwan TBI ball screw for enhanced vertical control. The NK105 G2 controller ensures a user-friendly experience, and the PNKE guide rails maintain motion accuracy.
Whether you’re crafting intricate furniture, signage, or decorative panels, the AE2500 K3ST meets your needs with exceptional consistency and speed—up to 12m/min travel and 8m/min working speed.
🟦 Key Highlights / Features:
🔧 Precision Cutting: ±0.025mm positioning accuracy
🌀 3.5KW HQD Spindle: Air-cooled, up to 18,000 RPM
🧱 Heavy Steel Structure: Vibration-free stability
⚙️ NK105 G2 Control System: Seamless operation
⚡ Stepper Motor & Drives: For smooth motion
📐 Aluminum Clamping Table: T-slot design for secure holding
🛠️ Advanced Rails & Screws: PNKE guide rails & Taiwan TBI ball screw
🔌 Dual Voltage: Compatible with AC 220V/380V, 50Hz
🟦 Technical Specifications:
Specification | Detail |
---|---|
Model | AE2500 K3ST |
Working Area | 1300 × 2500 × 200mm |
Spindle | 3.5KW HQD Air Cooling (0–18000 RPM) |
Control System | NK105 G2 |
Structure | Whole Steel Frame |
Motor & Drivers | Stepper Motor and Drives |
Transmission (XY Axis) | High Precision Helical Rack & Pinion |
Z Axis Transmission | Taiwan TBI Ball Screw |
Guide Rails | PNKE Guide Rails |
Working Table | T-Slot Aluminum Clamping Table |
Inverter | ZOYUAN Inverter |
Electronic Components | CHNT Components |
Limit Switch | CHNT |
Max Traveling Speed | 12m/min |
Max Working Speed | 8m/min (varies by material) |
Positioning Accuracy | ±0.025mm |
Voltage | AC 220V or 380V, 50Hz |
Machine Weight | 1000 Kg |
Overall Size | 3150 × 2025 × 1869 mm |
Environment | 0°C–45°C, Humidity 30%–75% |
Supported Code | G-Code |
🟦 Applications:
✅ Woodworking – Cabinets, furniture, decorative panels
✅ Sign Making – Professional signage & letters
✅ Acrylic & Plastic Cutting – Display and branding use
✅ Soft Metals – Aluminum and non-ferrous metal machining
✅ Furniture Manufacturing – Customized detailed designs
✅ Architectural Panels – Precision engraving and contouring
