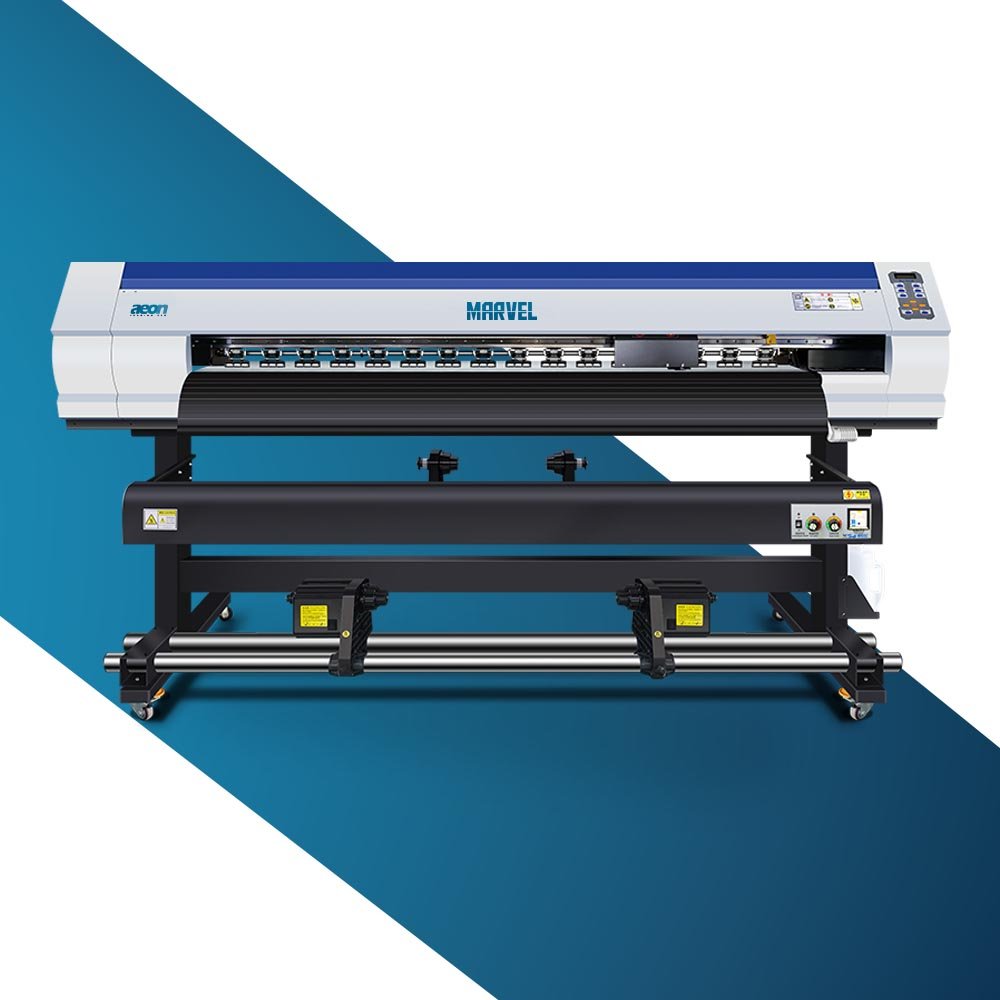

Aeon Marvel – Eco-Solvent Printer
The brand new Aeon Marvel eco-solvent printer features a dual Epson DX5 print head
Description
FUNCTIONS AND FEATURES
- Dual direction dual motor, high-resolution driver linear encoder, fewer errors in length, more stable running.
- Original silent guide, more stable, longer working life, lower noise.
- USB port more convenient, highest speed 480M/s, and it offers next work interface for printing in different places.
- Epson DX5 print-head work with 8 x 180 nozzles, achieving 1440 dpi high-resolution output.
- VSDT variable dot technology, smallest droplet is 3.5pl, largest droplet is 27pl, achieving perfect printing.
- Unique planar feather function and wave feather function, eliminating BANDING during printing, achieving excellent quality and perfect improvement.
- Multi-mode print option, common production mode can reach to high-speed of 32 M2 /h, faster on speed and higher on resolution.
- Own the most advanced EPSON intelligent print-head cleaning and moisturizing device, providing safe print-head cleaning and maintaining function, easy to print.
- Equipped with 4 king-size-capacity ink tanks, printing large format and vivid picture at great speed.
- Industry recommend quick drying ink, realizing quick drying while output, not easy to get damp and clamminess.
TECHNICAL PARAMETERS
| Print-head | Epson DX5 micro-piezo print-head | Resolution | 1440DPI |
| Number of Print-head | 2 | Number of nozzles | 1440(8*180) |
| Colors | CMYK | Color gamut | 16.7 million |
| Max media width | 1900mm | Max printing width | 1800mm |
| Printing speed ‘Tested on linear printing with Feather function’ |
2 PASS | 45 m2/h | |
| 4 PASS | 32 M2/ h | ||
| 6PASS | 26 m2/h | ||
| 8PASS | 18 m2/h | ||
| Ink type | Eco-Solvent based | Color management | ICC based; density & curves adjustment |
| RIP software | Maintop 5.3/ PHOTOPRINT 12/ ONYX 12 | Computer system | Win 732/64, Win8, Win10 |
| Interface | USB 2.0; USB 3.0 | Power supply | 50HZ/60HZ, 220V,2OA |
| Heating system | Front, bed, and rear body-heaters & extra dryer | File forms | Bmp, TIFF, Jpg, Pdf etc . |
| Feeding method | Roll to roll | Humidity | 35%-65% |
| Dimension | L*W*H: 2793*840*1330MM | Weight | 240KG |
Highlights
- EPSON DX5 PRINTHEAD : The Epson DX5 printhead uses variable droplet technology for high-resolution output at 1440 dpi.
- THK GUIDE RAIL: The printer is more stable even at high speed with the Original Japanese silent guide .
- IMPORTED SERVICE STATION: Automatically cleans and moisturizes print-heads, which pump ink well and maintains smooth ink flow.
- LEADSHINE INTEGRATED BRUSHLESS MOTOR AND DRIVE: Integrated brushless motor and drive solution, which is more accurate for media feeding and carriage movement.
- INTELLIGENT FEATHER FUNCTION: Unique 2D intelligent feather function eliminating BANDING effectively during printing improving printing quality obviously.
- LARGE CAPACITY INK TANKS : Transparent bulk ink tanks, 1.5L capacity, which is more convenient for operator to observe the ink level.
- AUTO CAD OUTPUT : Supporting CAD draft output directly, help you extend your business scope.
