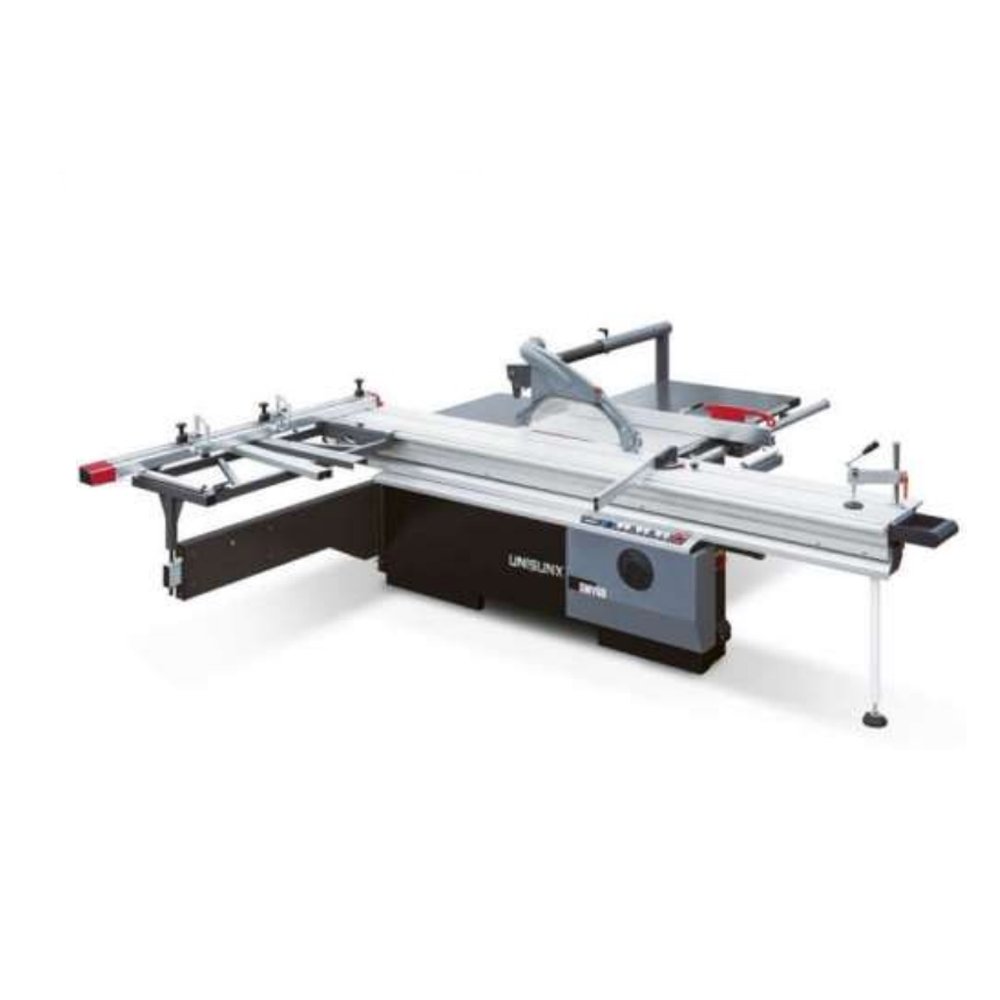

SLIDING TABLE SAW SMV8 D- 6KW

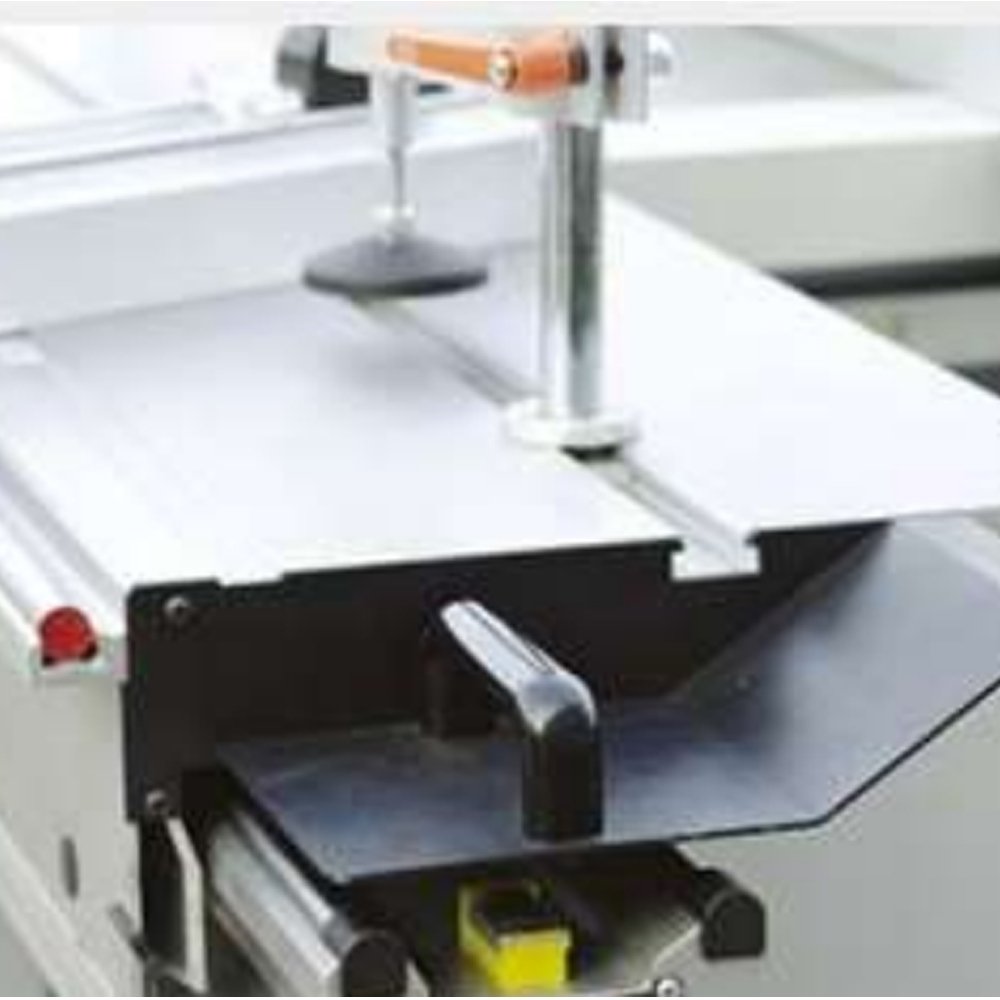

SLIDING TABLE SAW SMV8 D- 6KW - Image 2

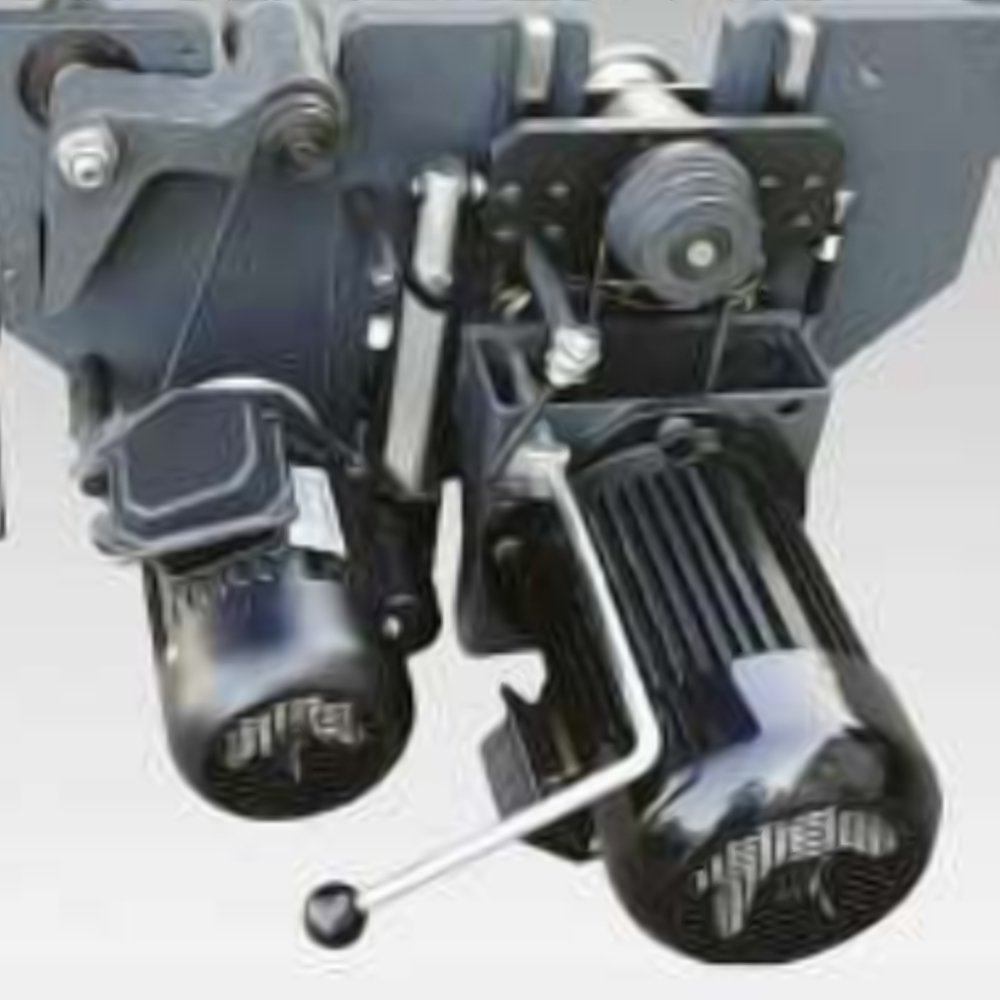

SLIDING TABLE SAW SMV8 D- 6KW - Image 3

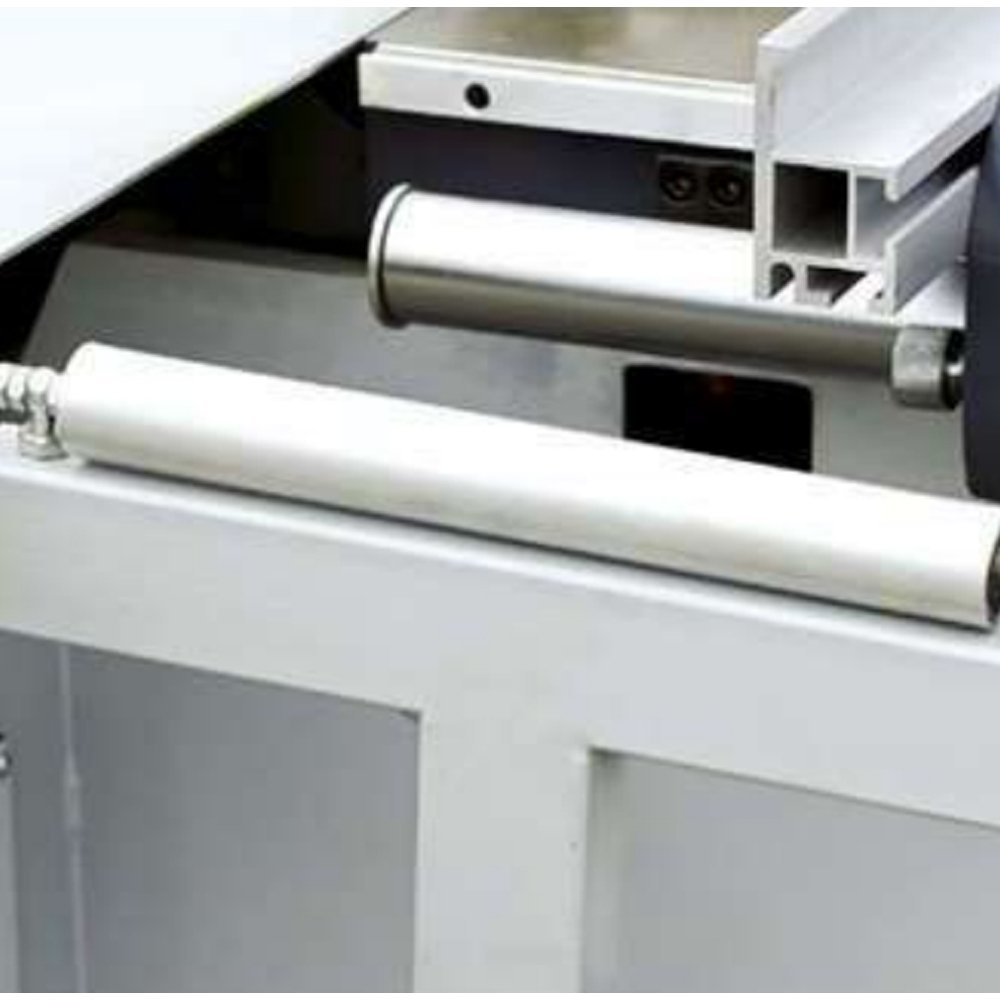

SLIDING TABLE SAW SMV8 D- 6KW - Image 4

SLIDING TABLE SAW SMV8 D- 6KW

SKU: aeSMV8D Categories: , Tags: , ,

Description

SLIDING TABLE SAW from Aeon Trading SMV8 D- 6KW comes with GERMAN DESIGN and 7.5HP



Dimension of the sliding table3200x405mm
Gross cut capacity3200mm
Width of cut between saw blade and rip fence1250mm
Saw blade diameterø 300mm(ø250-ø350)
Height of cut80mm
Diameter of guide shaft spindleø 50mm
Speed of main saw spindle3000/4000/5000rpm
Main spindle diameterø30mm
Tilting saw blade0-45°
Main motor5.5KW
Scoring saw blade diameterø120mm
Speed of scoring saw blade8000r/min
Scoring spindle diameterø 20mm
Scoring motor0.75kw
Net weight770kg
weight900kg
