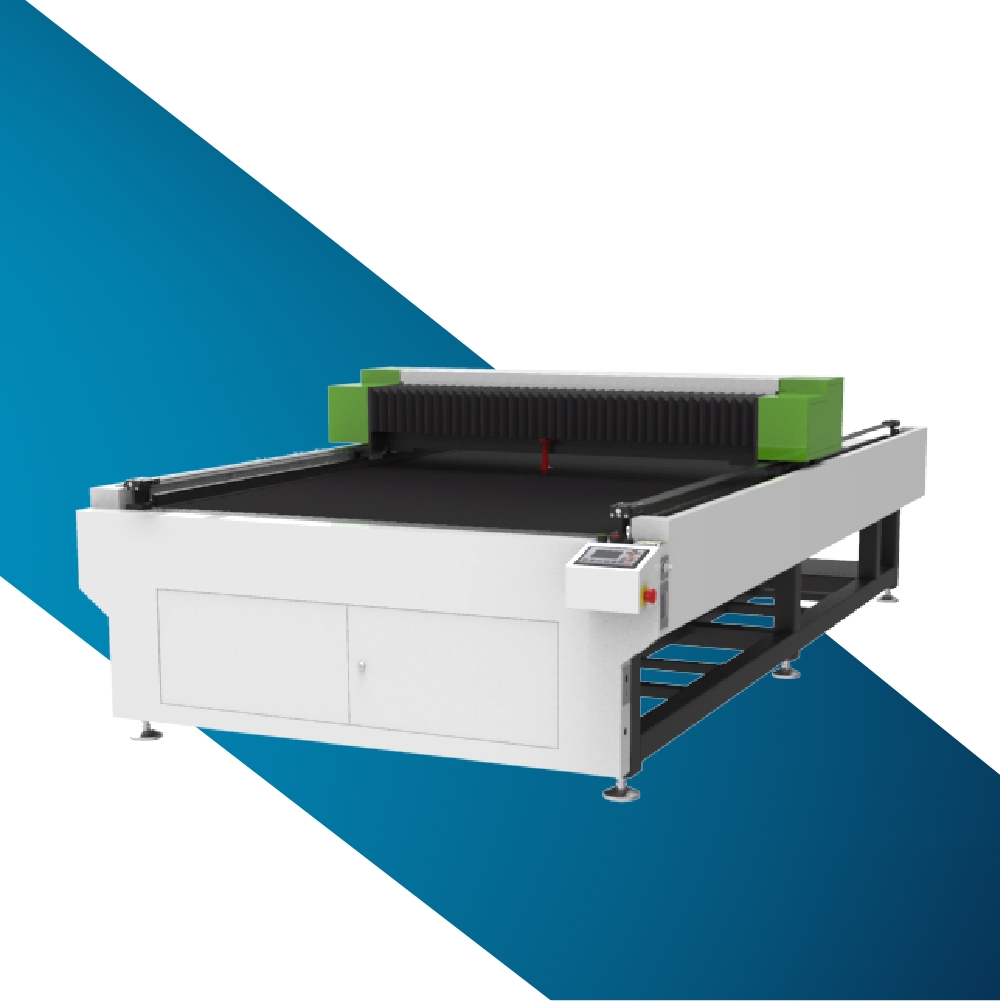

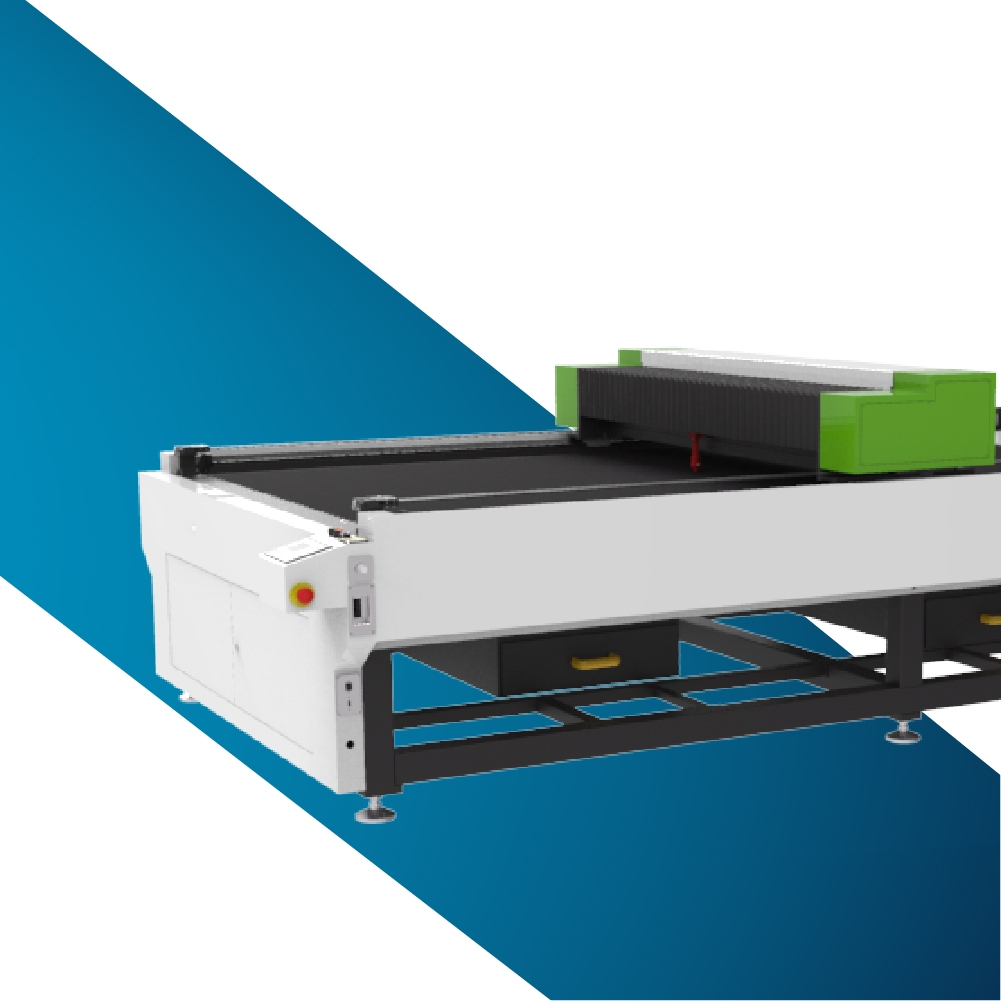

AE 1325 C-B-A – NON-METAL CO2 LASER CUTTING MACHINE
Our AE 1325 C-B-A, Acrylic laser cutting machine is suitable for cutting non-metal sheets, and it features a steel welded frame, high rigidity and dynamic response, so it ensures that no deformation takes place on a long-term basis. Dynamic stepper motors and high-precision linear guide rails offer high load capacity and dynamic response performance.
Description
Our AE 1325 C-B-A, Acrylic laser cutting machine is suitable for cutting non-metal sheets, and it features a steel welded frame, high rigidity and dynamic response, so it ensures that no deformation takes place on a long-term basis. Dynamic stepper motors and high-precision linear guide rails offer high load capacity and dynamic response performance.
FEATURES
- Machine body is made of reinforced welding frame, 600°C heat treatment and vibration ageing to do stress release and then under finishing milling to get high stability and to keep the deformation tolerance within ± 0.02mm;
- High strength aluminium alloy is adopted for the beam structure to ensure faster and smoother running;
MATERIALS
MDF, acrylics and the other materials cutting.
TECHNICAL SPECIFICATION
| Wavelength | 10.6 | Voltage | AC220V+10% |
| Spot | <1.2M2 | Frequency | 50/60Hz |
| Power | 130 | Dimension | 3530x2130x1180mm |
| Beam divergence (mrad) | 2.5 | Chiller | 450x330x650mm |
| Cooling method | Water | Weight | Machine: 1200 Kg & chiller: <45Kg |
| Work Area (mmXmm) | 1300×2500 | Working environment | Clean, no dust or less dust |
| Focal lengthmm | 50.8-127 | Temperature | 10-35°C |
| Max speed(m/min) | 30 | Humidity | <75% (Non-condensate) |
| Minimum line Width | 0.3mm | Gross power | 4KW |
| Position Accuracy (mm) | ±0.05 | Safety protection class | IP54 |
| Graphic Format | PLT, Al, DXF etc. | Laser safety class | 4 |
