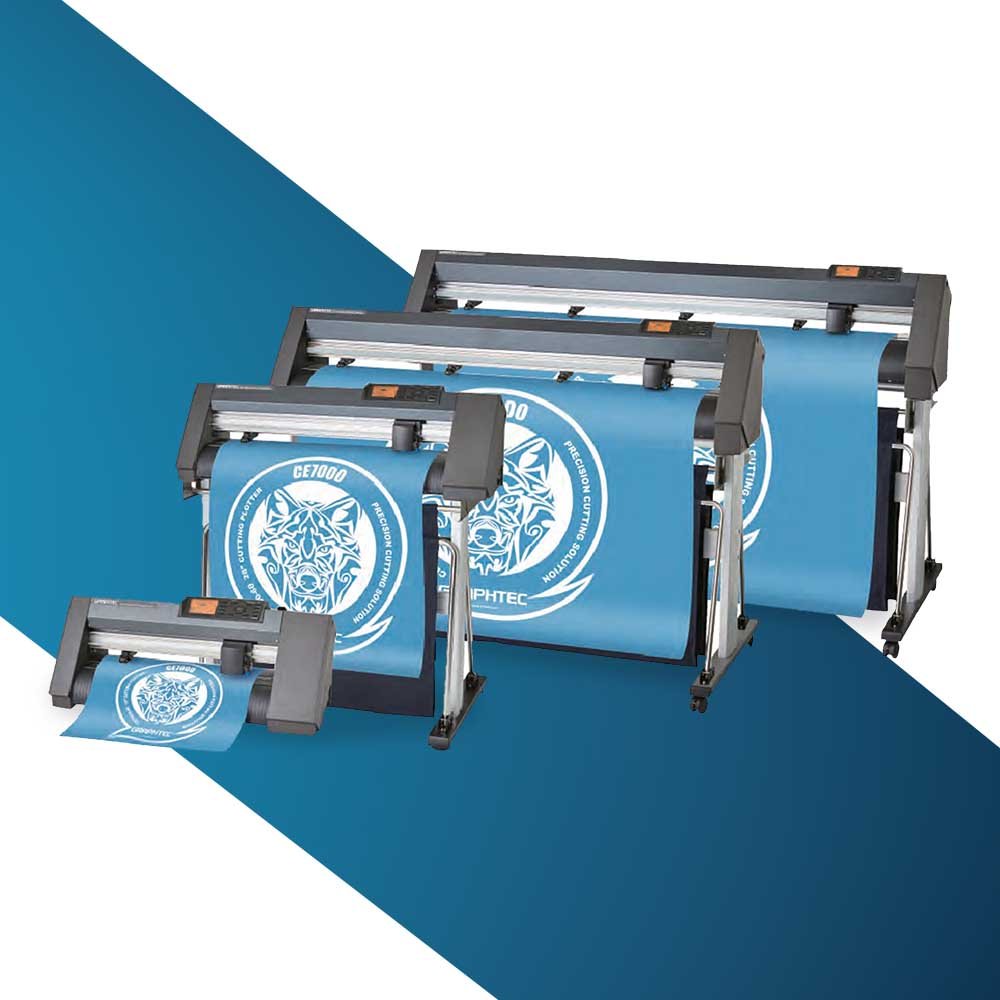

Graphtec CE 7000 Series Cutting Plotter
The Graphtec CE Series Cutting Plotters are one of the most popular and cost-effective plotter ranges on the market.
Description
Key Features:
- Available In 4 Widths: 40cm | 60cm | 130cm | 160cm
- 3 Model Formats: Desktop | Standalone | Enhanced
- Max Cutting Speed: Up To 1000mm/s (130 & 160 options)
- Cutting Force: Max 450gf
- Networking Capabilities
- ARMS 8.0 Optical Eye For Print & Cut
- Continuous Cut Capabilities (Barcode Reader)
- Reliable Long-Length Tracking
- Large Graphic Type LCD Control Panel
| The CE7000 Is Perfect For: | The CE7000 is The Best Plotter For: |
| • Sticker & Decal Creation | • Self-Adhesive Vinyls |
| • Window Signage | • HTV Materials |
| • Window Tint Films | • Paper |
| • Heat Transfer Apparel | • Card |
| • Stencil Materials |
A.R.M.S 8.0 Optical Eye
The FC9000 is equipped with the latest A.R.M.S (Advanced Registration Mark Sensing) 8.0 System to allow for easy and highly accurate print & and cut applications for pre-printed media. This system allows you to cut out around pre-printed designs to create adhesive-back labels and stickers or die-cut / perforation cut through card to create packaging samples out of card.
New Data Link Function (Barcode Data Management For Continuous Cutting)
By reading the Graphtec original barcode the FC9000 automatically detects its linked data from the PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
Continuous Cutting
Barcode data management allows for cutting different data sequentially by detecting the “Start Mark” of the new type of barcode. Sequential P&C process with roll-media is now available.
Supports Coloured Marks & Speciality Media
The FC9000 supports a wide range of media types including holographic paper and reflective sheets. This has been made possible to the machines improved ARMS 8.0 Sensor algorithm.
Supports Adobe Illustrator “Crop Marks”
Using Cutting Master 4 plug-in software, Adobe Illustrator crop marks will be available.
The Graphtec FC9000 is driven by Graphtec Pro Studio (Studio for MAC) and includes the Cutting Master 4 plugin to allow you to drive the plotter from softwares such as Adobe Illustrator and CorelDRAW Graphics Suite.
Graphtec Pro Studio (PC Only)
Easy-to-use application software for creating original designs. Includes enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting conditions and other settings on the plotter. EPS / Ai / CMX / PDF file compatibility allows users to import pre-existing designs.
Graphtec Studio For MAC
This is an easy-to-use application software for Mac OS to create original designs. Images can be easily created by using the program icons that are arranged around the drawing area.
Cutting Master 4
Cutting Master 4 is a plug-in software for Adobe Illustrator and CorelDRAW Graphics Suite. Send cutting data to the plotter, view cut preview, add registration marks, edit tool conditions / job settings and more. This easy to use plug-in enables you to get the best performance from your plotter.
